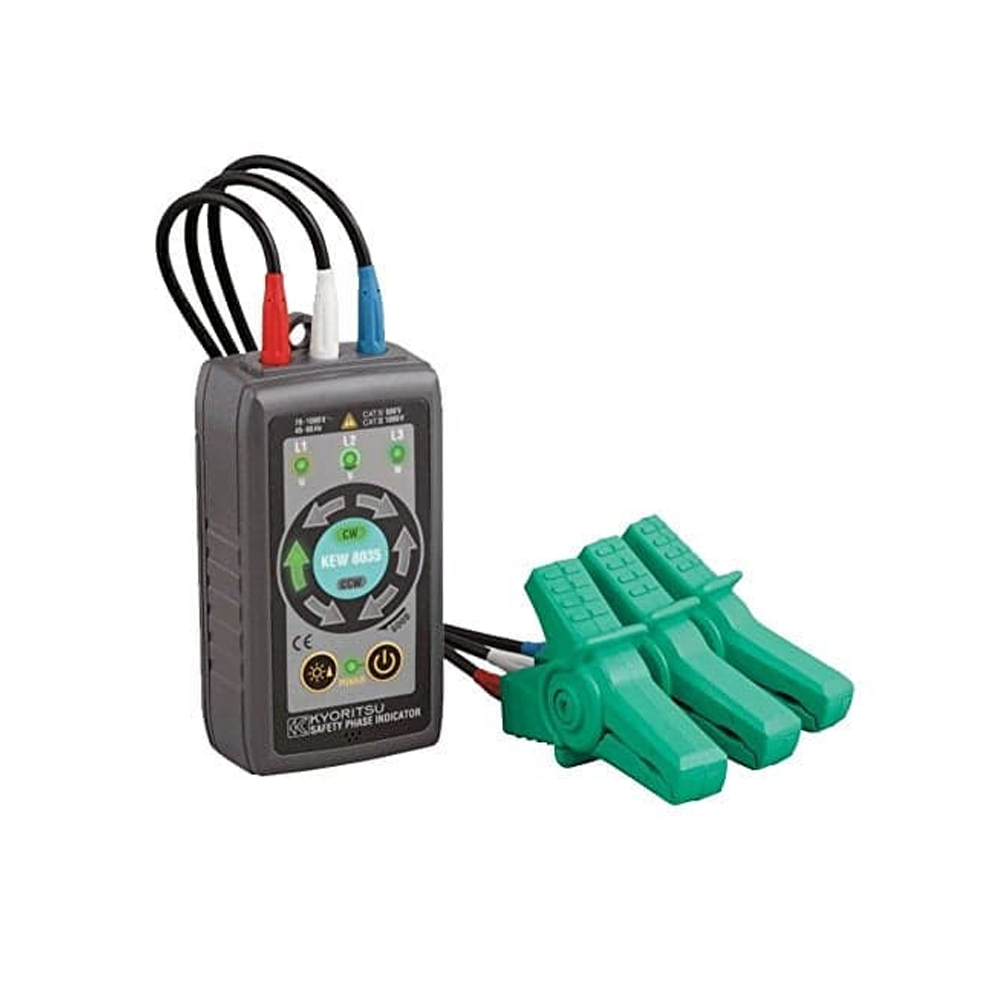

INDOMETER - Kyoritsu 8035

New technology permits safe testing, without the need of direct contact between probes and live wires.
The insulated crocodile clips can clip insulated cables from φ2.4 to 30mm.
Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones.
The instrument can be fixed to a metal panel via the magnet on the back side.
Wide measuring range for 3 phase installations from 70V to 1000V AC.
Super brightness function permits clear LED’s indication also in sunshine.
Complies with IEC 61010-1 CAT IV 600V and CAT III 1000V.

Specification
Functions	Phase rotation (Clockwise or Counter Clockwise), Presence of open phase
Detection method	Electrostatic induction
Measuring voltage range	From 70 to 1000V AC phase to phase (sine wave, continuous input)
Clamp diameter range	From φ2.4 to 30mm insulated cables
Measuring frequency range	45 to 66Hz
Phase rotation	Clockwise: Green arrow LEDs "rotate" in clockwise, Green symbol "CW" lits, Intermittent buzzer
Phase rotation	Counter Clockwise: Red arrow LEDs "rotate" in counter clockwise, Red symbol "CCW" lits, continuous buzzer
Visual indication	Via LEDs with Super brightness function
Battery voltage warning	Power LED blinks if battery voltage is too low.
Operating conditions	Temperature/Humidity Ranges -10 to 50ºC, 80% (no condensation)
Storage conditions	Temperature/Humidity Ranges -20 to 60ºC, 80% (no condensation)
Applicable standards	IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree2, IEC 61326-1, IEC 61557-1, -7
Power supply	Alkaline battery (LR6) ×4 Alkaline battery (LR6) ×4 * Continuous use: Approx. 100 hours (Auto power off in about 10 min.)
Dimensions	112(L) × 61(W) × 36(D) mm
Weight	Approx. 380g
Test leads	Double insulated cables, length approx. 70cm
Colours code	L1(U): Red, L2(V): White L3(W): Blue
Accessories included	9096 (Carrying case), Alkaline battery (LR6) × 4, Instruction manual

Kyoritsu 8035
