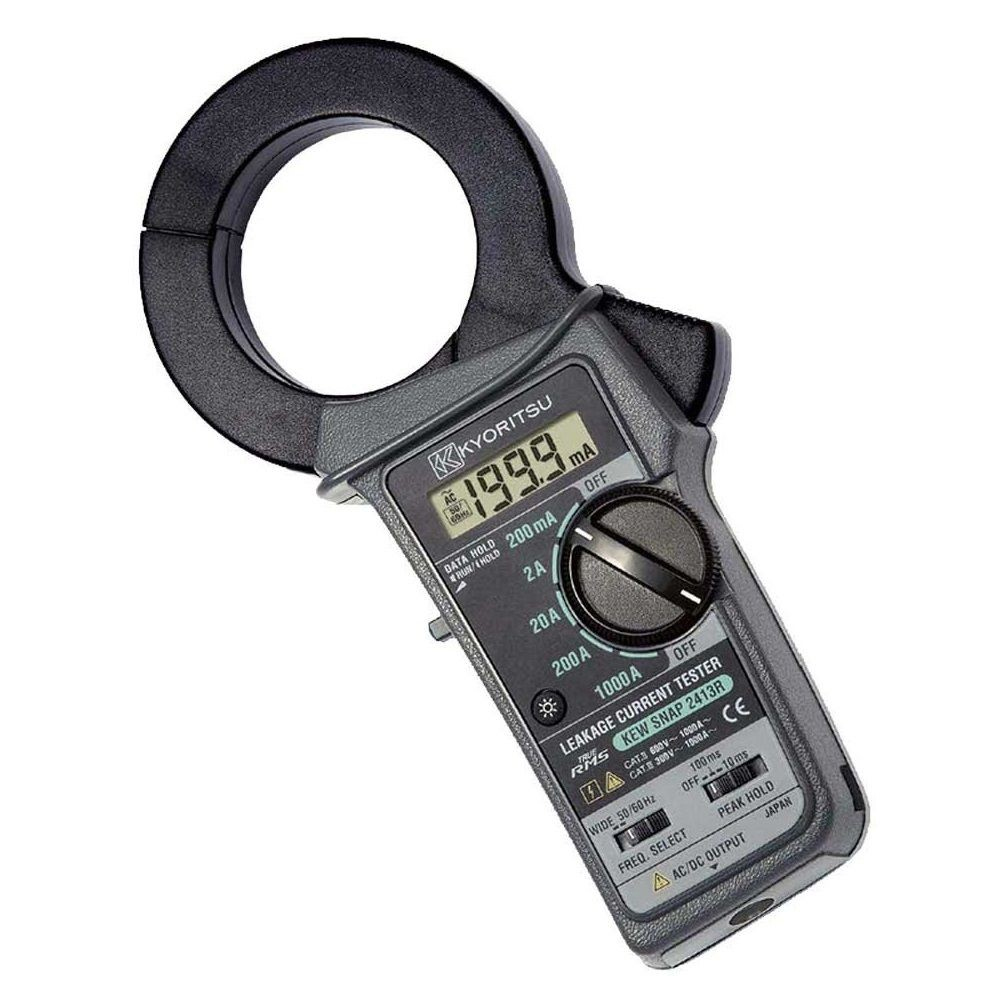

INDOMETER - Kyoritsu 2413R

Large transformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement.
True RMS enables an accurate measurement for distorted waveforms.
Measurement from mA up to AC 1000A
Frequency filter switch to eliminate the effect of the harmonics.
2 way analogue output terminal
Resolution 0.1Ma

Specification
AC A (50/60Hz)	200mA/2/20/200/1000A ±2.5%rdg±5dgt (200mA/2/20A) ±3.0%rdg±5dgt (200A, 0 - 500A) ±5.5%rdg (501 - 1000A)
AC A (WIDE)	200mA/2/20/200/1000A ±1.8%rdg±5dgt (50/60Hz) (200mA/2/20A) ±2.0%rdg±5dgt (50/60Hz) (200A, 0 - 500A) ±5.0%rdg (50/60Hz) (501 - 1000A)
Crest factor	3.0 or less
Conductor size	Ø68mm max.
Frequency response	40Hz - 1kHz
Output	Waveform : AC200mV against the maximum value of each range (1000A range is 100mV) Recorder : DC200mV against the maximum value of each range (1000A range is 100mV)
Applicable standards	IEC 61010-1 CAT III 300V Pollution degree 2 IEC 61010-2-032
Power source	6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours
Dimensions	250(L) × 130(W) × 50(D)mm
Weight	Approx. 570g (including battery)
Included Accessories	9094 (Carrying Case) 6F22 × 1 Instruction Manual
Optional Accessories	7073 (2WAY Output Cord)
