Compact and lightweight digital Insulation / Continuity Tester.
Insulation Resistance
| Test voltage | 500V/1000V |
|---|---|
| Measuring ranges (Mid-scale value) |
200MΩ (2/20/200MΩ) autoranging |
| Rated current | 1 – 1.1mA DC approx |
| Output voltage on open circuit | Rated test voltage +12% |
| Output short circuit current | 1.5mA DC approx. |
| Accuracy | ±2%rdg±1dgt |
Continuity Test
| Measuring ranges (Mid-scale value) |
200Ω (20/200Ω) autoranging |
| Output voltage on open circuit | 600mV DC approx. |
| Output short circuit current | 6mA approx. |
| Accuracy | ±2%rdg±0.1Ω ±1dgt |
General
| Power source | R6 (AA) (1.5V) × 8 |
| Dimensions | 144(L) × 93(W) × 61(D)mm |
| Weight | 460g approx. |

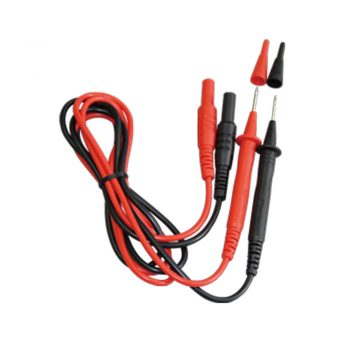

| Included Accessories | 7025 (Test leads) Pouch for test leads 9050 (Carrying Case) R6 (AA) × 8 Instruction Manual |
