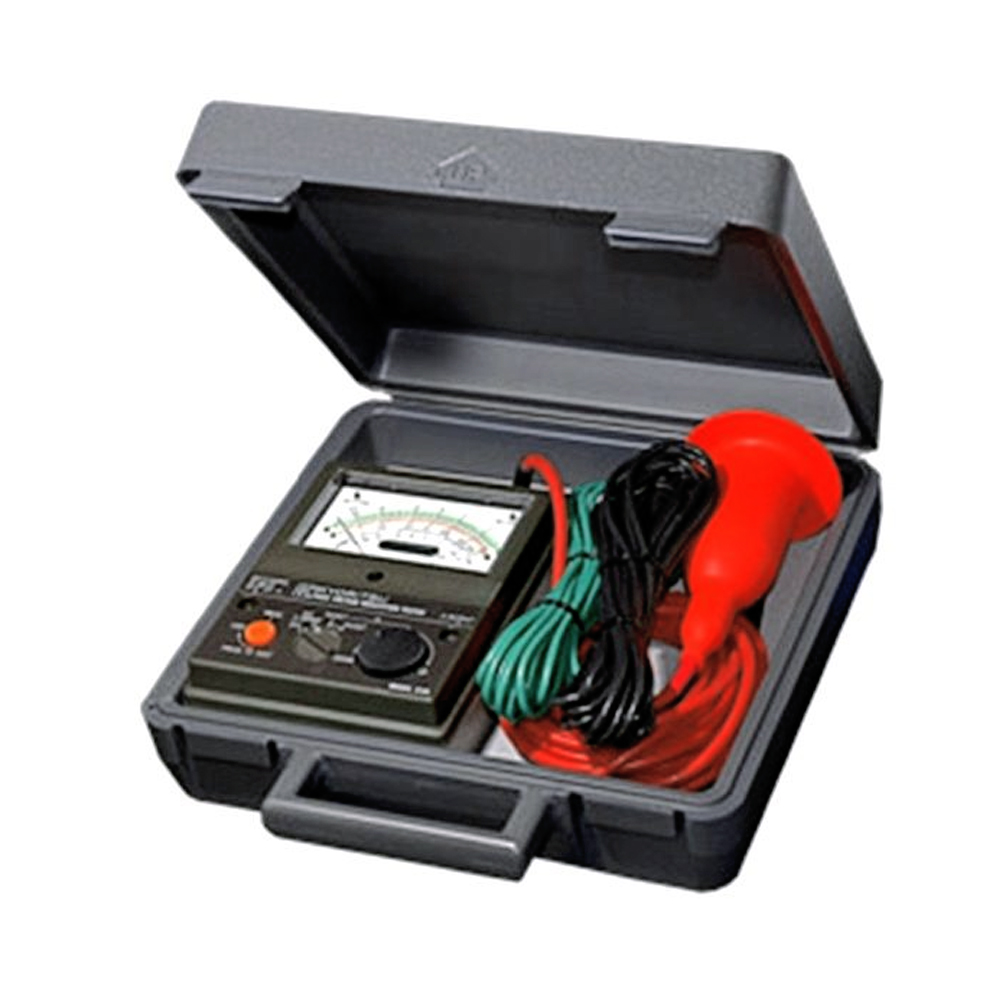

INDOMETER - Kyoritsu 3124

Permits a wide range of insulation testing up to 100GΩ at variable test voltage from 1kV to 10kV.
DC voltage output for recorders.
Output voltage is shown on the digital display.
After tests, automatically discharges the charges stored in the circuit under test.
Operated by rechargeable Nickel-Cadmium batteries.

Specification
DC Test Voltage	1k - 10kV variable	1000V
Measuring Ranges (automatic change)	1.6GΩ/100GΩ (autoranging)	100MΩ
First Effective Measuring Ranges Accuracy	0.05 - 50GΩ	1 - 100MΩ
First Effective Measuring Ranges Accuracy	\|±10% rdg
Other ranges Accuracy	\|±1% of scale length
Output Voltage and Set Voltage Indicate	DC 0 - 10kV \|±2%rdg±2dgt
Withstand Voltage	5000V AC for 1 minute
Power Source	Ni-Cd rechargeable battery (1.2V) × 8
Dimensions	200(L) × 140(W) × 80(D)mm
Weight	1.5kg approx.
Accessories	7082 (Lead for recorder) 7083 (Lead for battery charging) 7084 (Earth and guard leads) 8075 (120V) or 8080 (220V) (Battery charger) 9176 (Carrying case [Hard]) Ni-Cd rechargeable battery × 8 Instruction Manual
