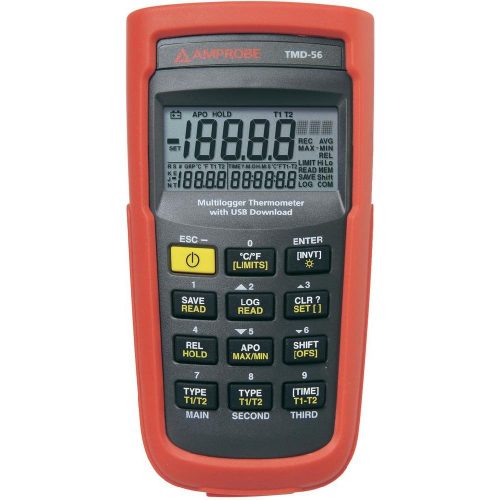

The Amprobe TMD-56 Thermometer offers multi-logging capabilities to monitor and track temperatures along with a USB computer download feature. This model with dual inputs allows for easy super-heat and sub-cool temperature measurement as well as cut-out and in temperature measurements.
- Backlit triple-display
- Built in memory: 16 sets, Maximum 16000 data points
- Data-logging:256 samples with real-time data per channel
- Easy Data Recall with up and down key: T1, T2, T1-T2, Time and Memory Location
- Thermocouple Offset Adjustment
- REC, MAX, MIN, MAX-MIN, Average, Relative Zero and HOLD functions
- Resolution 0.1°C/1°C, 0.1°F/1°F
- Warning beeper with Hi/Lo setting
- User selectable recording interval
- Real time clock with calendar
| FEATURE |
TMD-50 |
TMD-51 |
TMD-52 |
TMD-53 |
TMD-53W |
TMD-55 |
TMD-56 |
TMD-55W |
| Thermocouple type |
K |
K, J |
K, J, T, E |
K, J |
K, J |
K, J, T, E, R, S, N |
| Basic accuracy |
0.1 % |
0.1 % |
0.05 % |
0.05 % |
0.05 % |
0.05 % |
0.05 % |
0.05 % |
| Number of parameters on the display |
1 |
1 |
3 |
3 |
3 |
3 |
3 |
3 |
| Real time clock - wireless beeper with setting |
– |
– |
– |
• |
• |
• |
• |
• |
| Wireless transmission |
– |
– |
– |
– |
• |
– |
– |
• |
| Data capture |
– |
125 Samples |
– |
– |
– |
128 Samples |
256 Samples |
128 Samples |
| Data logger |
– |
– |
– |
– |
– |
1024 Points |
16000 Points |
1024 Points |
| PC interface |
– |
– |
– |
– |
Wireless |
– |
USB |
Wireless |
| Thermocouple Type |
Temperature Range |
| K-TYPE |
-328 °F → 2501 °F (-200 °C → 1372 °C) |
| J-TYPE |
-346 °F → 2192 °F (-210 °C → 1200 °C) |
| T-TYPE |
-328 °F → 752 °F (-200 °C → 400 °C) |
| E-TYPE |
-346 °F → 1832 °F (-210 °C → 1000 °C) |
| R-TYPE |
32 °F → 3212 °F (0 °C → 1767 °C) |
| S-TYPE |
32 °F → 3212 °F (0 °C → 1767 °C) |
| N-TYPE |
-58 °F → 2372 °F (-50 °C → 1300 °C) |
For complete specs please download the product datasheet under the “Resources" tab.
